Belcat 15W Wireless Mic Set (4 Mics) Built-in Amp B15-W4
$790.00
types of wireless microphones:
Quantity
1
Description
A reliable 15W mic + speaker set that combines four wireless microphones in one package.
You can use up to four wireless microphones simultaneously, and adjust the volume for each channel independently.
When purchasing, you can choose a combination of four mics from three types: handheld mic, lavalier (clip-on) mic, and headset mic.
It also has an AUX IN for connecting audio devices such as a PC, tablet, or smartphone, so you can play music or run background music (BGM) as well.
*Depending on the device you use, you may need a separate adapter plug or connection cable.
Recommended venue size: roughly around 60 m² indoors
Examples: Indoors with an audience of about 15–20 people; typical elementary/junior high/high school classrooms, restaurants, banquet halls, meeting rooms, school extracurricular activities, mini stages, etc.

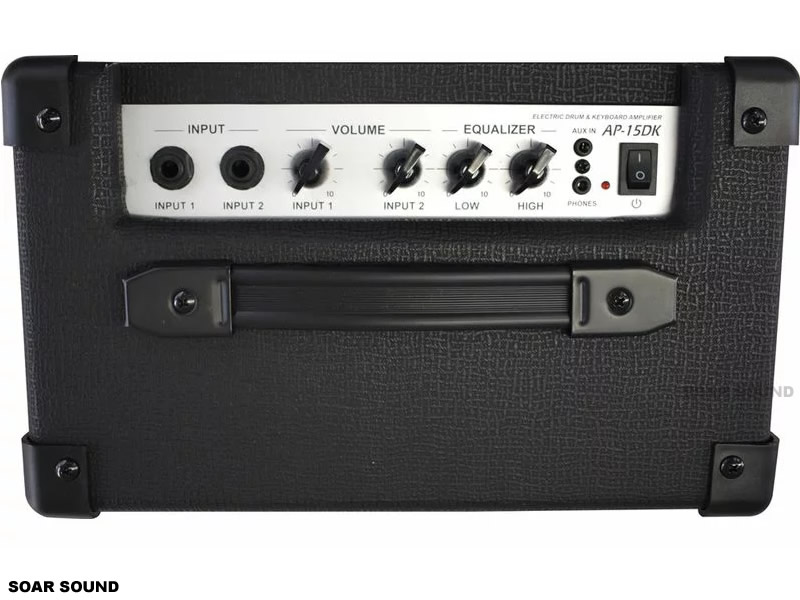

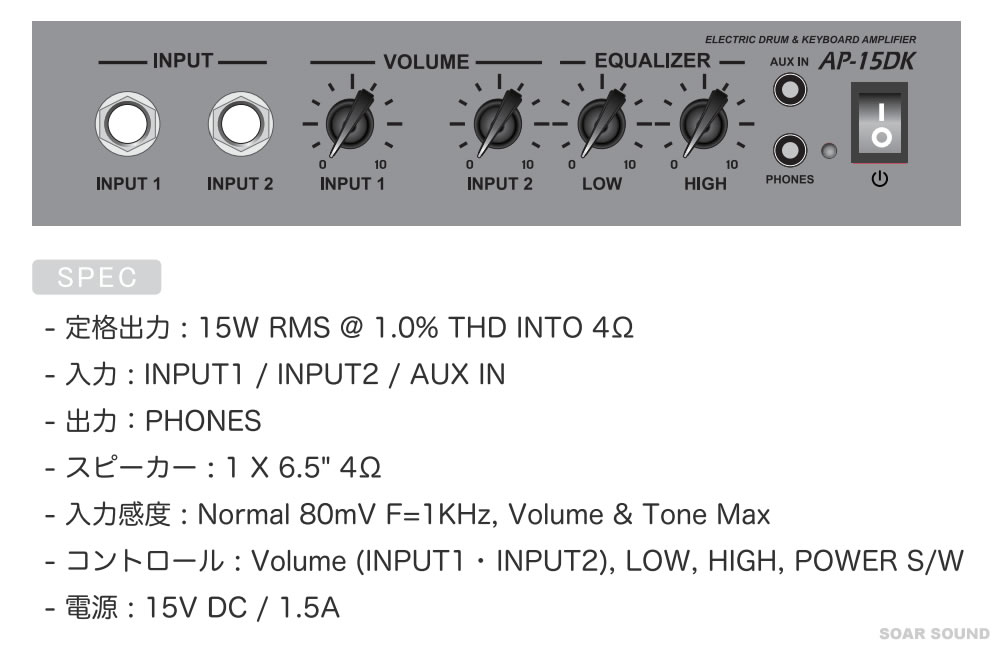

(Speaker Specifications)
Rated output: 15W RMS
Inputs: INPUT1 / INPUT2 / AUX IN
Output: PHONES
Speaker: 1 × 6.5” 4Ω
Input sensitivity: Normal 80mV, F=1kHz, Volume & Tone Max
Controls: Volume (INPUT1・INPUT2), LOW, HIGH, POWER S/W
Power supply: 15V DC / 1.5A
Weight: 4.8kg
Included accessories: AC adapter, user manual
(Microphone System Specifications)
Type: True Diversity, PLL Synthesized
Operating range: 300 ft (90 m) line of sight
Frequency response: 50 Hz – 15 kHz
T.H.D. (overall): < 1% (@AF 1 kHz, RF 46 dBu)
S/N ratio: > 100 dB
Operating temperature: -10°C (14°F) to +50°C (122°F)
Tone signal frequency: 32.768 kHz
Modulation: FM (F3E)
Receiver: KWS-899R
Unbalanced audio output level (max): +10 dBu
Balanced audio output level (max): ±0 dBu
Sensitivity: -100 dBm / 30 dB SINAD
Image rejection: > 50 dB
Required power: 15 VDC 200 mA
Dimensions: 220 mm × 125 mm × 45 mm
Weight: 560 g
(Handheld Microphone)
RF power: 10 mW EIRP
Power requirement: AA alkaline batteries (LR6) × 2
Battery life (continuous use): approx. 3 hours
Dimensions: 240 mm × 50 mm
Weight: 270 g
(Beltpack Transmitter)
Input connector: 1 Mini-XLR (4B)
Input impedance: 1 MΩ
RF power: 10 mW EIRP
Power requirement: AA alkaline batteries (LR6) × 2
Battery life (continuous use): approx. 3 hours
Dimensions: 65 mm × 85 mm × 25 mm
Weight: 82 g
*The included batteries are for testing purposes.
